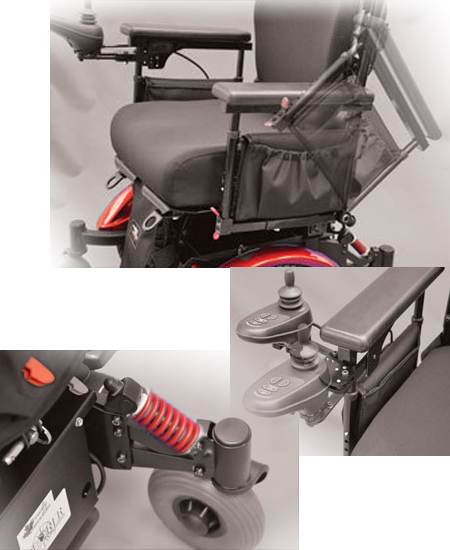

Full suspension base with Front and Rear shocks Designed for two – 12 volt 22NF batteries, PGDT VR2 controller with joystick and 4A charger on board. Standard seating system consisting of: solid seatpan, Orion back and Prism Ideal cushion, 2 pole right angle motors. Seat width can increase from 16” to 20” or 20” to 24” as well as seat depth can increase from 17” to 20” without the need of changing frame members. Arm heights: 9-3/4” – 12-3/4” (adjustable) Angle adjustable back (87° to 110°) 70°/80° degree pin style front riggings or one piece footboard. Fixed headrest with foam pad Composite footplates, Heel loops, front and rear transit hooks (optional).

Screen Shot 2015-12-04 at 2.37.03 PM

Adjustable Springs

Rear springs can be adjusted to one of three levels, according to the user’s weight.

Flip Back Arm Rest

Flip back arm rest for easy client transfers. Height adjustable (3/4” increments).

Flip Up FootBoard

One piece flip up Footboard.

PGDT VR2 Controller

PGDT VR2 controller with joystick and 4A charger on board.

Adjustable Seat Belt

Push button adjustable seat belt.

Lever Control

Lever is used to switch the wheelchair from Drive to Neutral or vice versa.

Transport Tie

Optional transport tie downs.

Full Suspension Base

Full suspension base with front and rear shocks. Rear and front casters 6” x 2” semi-pneumatic.

Battery Compartment

Battery compartment at the rear easily flips down for battery placement. Designed for two – 12 volt 22NF batteries. It also holds battery charger and has an indicator light.
